Fluoro-Plus™ PFA Series Filter Housings

Overview
Specifications
Applications
Performance
Additional Information
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

High-purity PFA single cartridge filter housings

  • High-purity PFA materials of construction provide the broadest available chemical compatibility and strongest mechanical properties with lowest possible extractables
  • Accepts one 4 in. (10.2 cm) or 10 in. (25.4 cm) 222 O-ring SOE style cartridge
  • 3/4 in. (1.91 cm) NPT and butt weld inlet and outlet connections available
  • Standard 1/4 in. (0.64 cm) NPT upstream and downstream gauge connections
  • Use with fluoropolymer cartridge for an all-fluoropolymer filtration system

Specifications

Maximum Operating Pressure

  • 4.5 bar (65 psig) @ 95 °C (203 °F)
  • 5.2 bar (75 psig) @ 20 °C (68 °F)

NOTE: Maximum operating pressure ratings are vessel ratings only. Safe operating temperature and pressure will depend on the filter cartridge and gasket/O-ring used. For inquiries on compatibility, contact Pall or your local distributor.

Construction

  • Head and bowl: High purity PFA
  • O-ring: FEP encapsulated silicone
  • NPT plugs: High purity PFA
  • Threaded head inserts: PTFE coated 316 stainless steel
  • Adapter1: High purity PFA (10 inch model only)

Connections

  • Inlet/outlet: 3/4 in. (1.91 cm) NPT or butt weld
  • Vent & drain: 1/4 in. (0.64 cm) NPT

Cartridge Configuration

  • 10.2 cm (4 in.): M3 (Code 3), 222 O-rings, flat closed end
  • 25.4 cm (10 in.):
    • M8 (Code 8), 222 O-rings, flat closed end
    • M3 (Code 3), 222 O-rings, flat closed end

1 - Use the supplied high purity PFA adapter with a 25.4 cm (10 in.) M3 style cartridge

This housing is not recommended for compressed air or gas service. It is suitable for use with fully compatible* liquids only. This housing is not recommended for acid service at the pressure shown. Please contact Pall for detailed compatibility information.

* which do not soften, swell or adversely affect the product or its materials of construction.

NOTE: Use of this product in a manner other than in accordance with Pall's current recommendations may lead to injury or loss. Pall cannot accept liability for such injury or loss.

Performance

Housing Differential Pressure vs. Liquid Flow Rate

Unit conversion: 1 bar = 100KPa

Flow rate is for 25.4 cm (10 in.) housing without filter cartridge. For liquids other than water, multiply the pressure drop by the specific gravity of the fluid.

Applications

Applications

  • Acid etch systems - including Piranha Etch Solvent Strip applications
  • Most aggressive and/or high temperature acids or solvents

Recirculating Applications

Retention ratings, by convention, are for single pass applications. Many applications involve recirculating systems, where the filter media has several opportunities to capture contaminant. For example, in a 15.1 liter (4 gallon) system circulating at 7.6 lpm (2 gpm), the fluid passes through the filter cartridge five times in ten minutes. Thus, the effective retention of a filter cartridge is much finer. Specifically, a cartridge rated at 0.5 μm (nominal) on a single pass is often an effective 0.2 μm (nominal) filter on a recirculating basis.

Multi-Pass

Additional Information

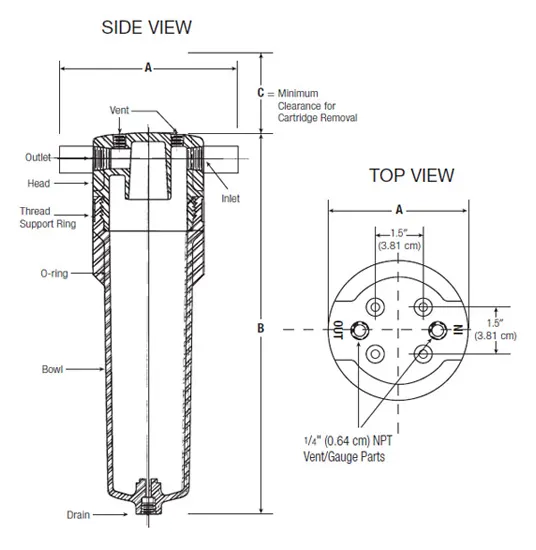

Dimensional Data (nominal)

Column1 Dimensions cm (in.)
A B C
IDO4-PFA - 3/4 12.37 (4.87) 19.53 (7.69) 15.2 (6)
IDO4-PFA - 3/4 BW 19.4 (7 21/32) 19.53 (7.69) 15.2 (6)
IDO10-PFA - 3/4 12.37 (4.87) 40.49 (15.94) 33.0 (13)
IDO10-PFA - 3/4 BW 19.4 (7 21/32) 40.49 (15.94) 33.0 (13)

Part Numbers / Ordering Information

This information is a guide to the part number structure and possible options. For availability of specific options and housing details, please contact Pall.

Example Part Number: IDO 10 - PFA - 3/4BW(See bold references in tables below)

Part Number: IDO < Cartridge Length Code from Table 1 > - PFA - < Inlet/Outlet Connection Size Code from Table 2 >

Table 1 - Cartridge Lengths

Code Cartridge Lengths (cm/in.)
4 10.2/4 (M3 only)
10 25.4/10

Table 2 - Inlet/Outlet Connection Size

Code Inlet/Outlet Connection Size
3/4 3/4 in. NPT
3/4BW 3/4 in. butt weld extensions
