Ultipleat® HP Filter

Overview
Specifications
Performance
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

The Ultipleat HP filter is specifically designed for use in recirculating nickel plating baths to provide rapid bath clean-up. It is also ideally suited for use in recirculated cleaning baths of DI water and alkaline soaps.

Features and Benefits

  • Membrane wets out spontaneously in Ni plating and DI water + soap mixtures
  • Removal rating of 0.1 µm in recirculation mode; 0.2 µm in single pass
  • Very high flow rates
  • Exceptionally low differential pressure
  • Low extractables
  • 100% integrity tested
  • Serialized for traceability
  • Manufactured in cleanroom environment

Specifications

Materials

  • Medium: Hydrophilic, highly asymmetric polysulfone
  • Core, Cage, End Caps: Polypropylene
  • Support and Drainage: Polypropylene
  • O-Ring: fluoro-polymer encapsulated fluoroelastomer

Removal Ratings

  • 0.1 μm in recirculation mode; 0.2 μm in single pass

Filter Area

  • AB2 style: 1.64 m2 / 17.6 ft.2

Configurations

  • Nominal Length: AB2: 508 mm / 20 in.
  • Diameter: 70 mm / 2.75 in.
  • O-Ring Size/End Caps: Code 3 (222 double O-ring / flat end)

Operating Conditions

  • Maximum Operating Temperature: 90 °C / 194 °F
  • Maximum Forward Differential Pressure: 0.2 MPa @ 90 °C / 30 psid @ 194 °F

Performance

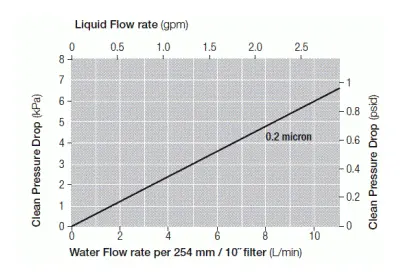

Pressure Drop vs. Liquid Flow Rate1

1For liquids with viscosity differing from water, multiply the pressure by the viscosity in centipoise.

Part Numbers / Ordering Information

Part Numbers / Ordering Information4

Part Number Removal Rating (μm) Nominal Length (mm / in.) Configuration Code O-Ring Material
AB2UHPA3EH1 0.1 μm in
recirculation mode
0.2 μm in
single pass mode		 508 / 20 3 Teflon
encapsulated
fluoroelastomer
