Specifications

Materials of Construction2

Parts Material
Filter Medium Surface-modified PTFE
Media Support PFA
Core, cage and end caps PFA
Housing PFA
O-ring options3 FEP-encapsulated fluoroelastomer,FFKM

2 All perfluoro-polymer materials made without PFOA.
3 Consult factory for other options.

Removal Ratings and Operating Conditions

Kleen-Change® (KC)

Removal Ratings 5 nm
Media Code XP5
Filter Area 2.8 m2
Flow Inline, L-flow, T-flow
Metallic extractables4 < 500 ppt4
Maximum Operating Temperature 185 °C / 365 °F
Maximum Operating Pressure 0.49 MPaG ( 71 psig) @ 25°C (77°F)
0.39 MPaG (56.6 psig) @ 60°C (140°F)
0.34 MPaG (49.3 psig) @ 90°C (194°F)
0.20 MPaG (29.0 psig) @ 120°C (248°F)
0.15 MPaG (21.8 psig) @ 150°C (302°F)
0.12 MPaG (17.4 psig) @ 185°C (365°F)

Cartridge

Removal Ratings 5 nm
Media Code XP5
Filter Area ABFG1 2.8 m2
Metallic extractables4 < 1 ppb4
Maximum Operating Temperature 185 °C / 365 °F
Maximum Differential Pressure 0.59 MPaG (85.6 psig) @ 50°C (120°F)

Performance

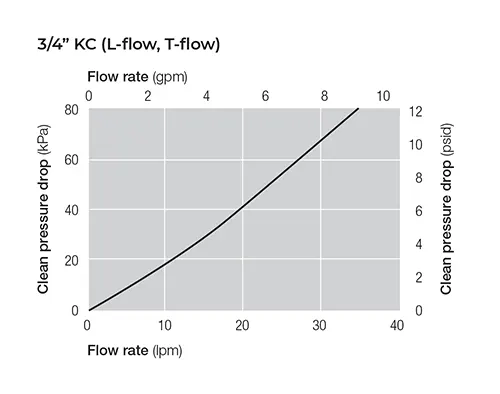

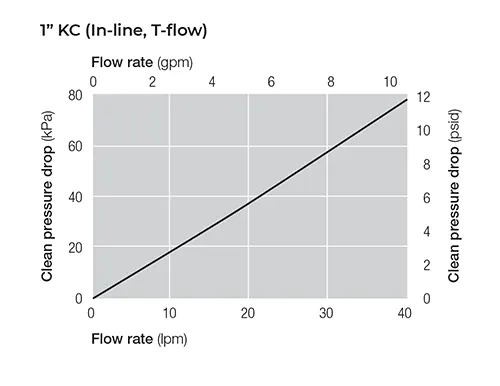

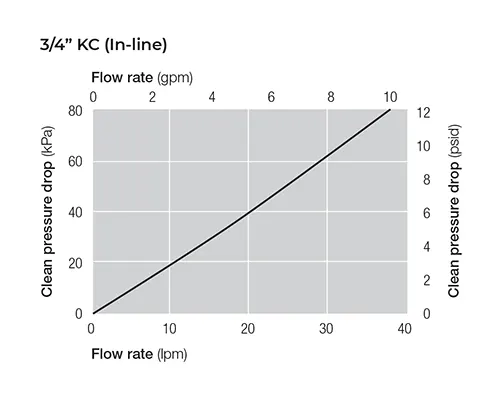

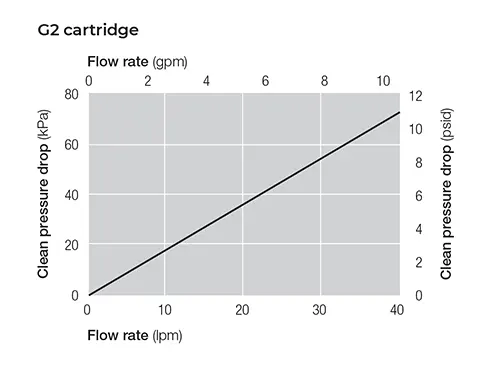

Typical Flow Characteristics - 1 cP fluid, 20 °C

Ordering Information

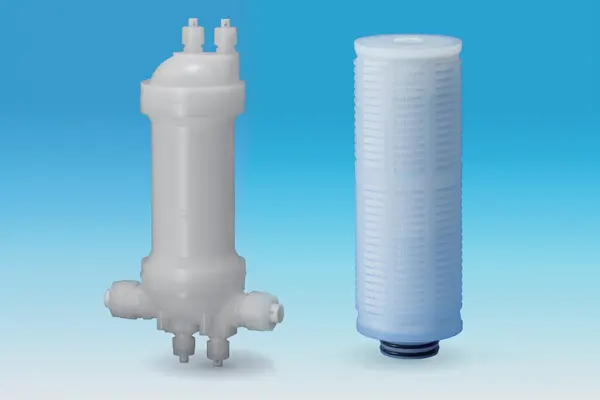

XpressKleen G2 KC Assemblies

LDF [1][2] 1XP [3][4] E [5]

Table 1
Code Downstream vent
G N/A
V Available

Table 2
Code Flow
T T-flow
N In-line
L L-flow
Table 3
Code Removal rating
5 5 nm
Table 4
Code Inlet/Outlet Vent/Drain Type
Head end Bowl end
12 3⁄4 in male 1⁄2 in male 1⁄2 in male T-flow/L-flow
12 3⁄4 in male 1⁄2 in male 1⁄2 in female DV type
12 3⁄4 in male 3⁄8 in male 3⁄8 in male In-line
124 3⁄4 in male 1⁄4 in male 1⁄4 in male In-line
128 3⁄4 in male 1⁄2 in male 1⁄2 in male DV type
13 3⁄4 in male 1⁄2 in female 1⁄2 in female T-flow
16 1 in male 1⁄2 in male 1⁄2 in male T-flow
16 1 in male 1⁄2 in male 1⁄2 in female DV type
16 1 in male 3⁄8 in male 3⁄8 in male In-line
164 1 in male 1⁄4 in male 1⁄4 in male In-line
168 1 in male 1⁄2 in male 1⁄2 in male DV type
17 1 in female 1⁄2 in female 1⁄2 in female In-line
DV : Downstream Venting
Table 56
Code Connections
1 20 series Flowell7
2 Super Pillar type8
51 Flare style
6 FinalLock9
71 Super Pillar 300 P series
72 Super Pillar 300 P series L type
8 60 series Flowell
9 11CR series Flowell

6 Disposable capsules are not available with every option. (Refer to codes for options.) Contact your local Pall representative for option availability.
7 Flowell is a trademark of Flowell Corporation.
8 Super Pillar is a trademark of Nippon Pillar Packing Co., Ltd.
9 FinalLock is a trademark of Kurabo Industries Ltd.

XpressKleen G2 Filter10

ABFG [1] XP [2] 3E [3]

Table 1
Code Length (Nominal)
Inch mm
1 10 225
2 20 468
Table 2
Code Removal rating
5 5 nm
Table 3
Code O-ring material
H1 FEP-encapsulated fluoroelastomer
H35 Perfrez11
H38 FFKM

10 Cartridges are shipped prewet as standard.
11 Perfrez is a trademark of Applied Seals North America, Inc.

Get In Touch

Please fill out the form below with your details and message, and we'll get back to you as soon as possible.

Name*
Phone
Email*
Company*
Your Question*
I would like to receive more information about ABLROOTS INDUSTRIES products and services, and related product and services from ABLROOTS INDUSTRIES related companies via email or phone.

More Products

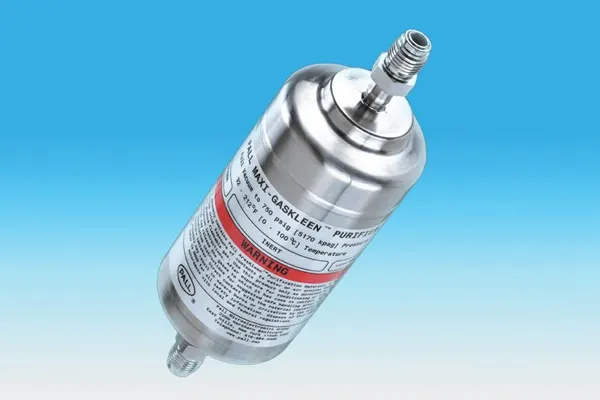

Maxi Gaskleen® Gas Purifier

Product Type: Systems

Segment: Semiconductor

View Details Add to Quote

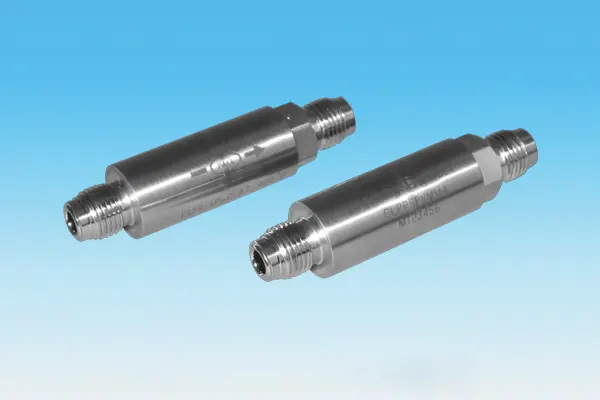

Gaskleen® SP Gas Purifier

Product Type: Systems

Segment: Semiconductor

View Details Add to Quote

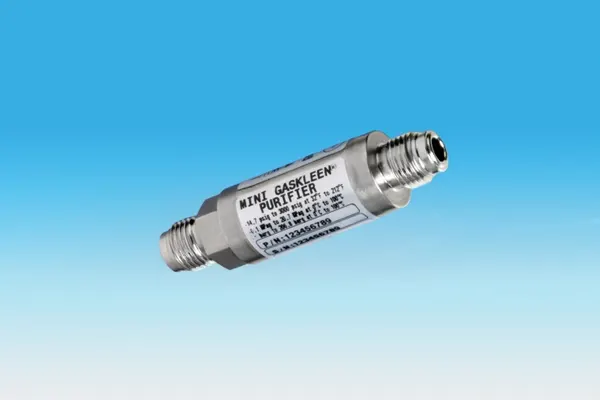

Mini Gaskleen® Gas Purifier
