Megaplast™ G2 Filter Housing(Ultrapure Water Filtration)

Home
Water Filters
Megaplast™ G2 Filter Housing (Ultrapure Water Filtration)

The Megaplast G2 housing is designed to accommodate 4 in. / 102 mm, 10 in. / 254 mm and 20 in. / 508 mm filter cartridges up to 3.25 in. / 82.5 mm in diameter. The connections are molded directly into the head and bowl, reducing the space required for fit up. These housings are designed to meet the stringent cleanliness requirements of ultrapure applications by utilizing PFA for all wetted components.

High purity design

Metal free construction

High temperature capability

Closure threads are on the "dry" side

Closure nut is free floating

Cleaned and packaged under controlled cleanroom conditions

Specifications

Materials

Molded PFA (440HP) head with molded connections
Molded PFA (440HP) bowl with molded vent and drain
Closure nut: PTFE or PVDF
Mounting bolts: PVDF (glass-filled)
O-ring FEP encapsulated Fluoroelastmer

Configurations

Connection Options:
- ³⁄₄ in., 1 in. male flare style
- ³⁄₄ in. NPT
- ³⁄₄ in., 1 in. Butt weld
4 in. / 102 mm, 10 in. / 254 mm and 20 in. / 508 mm cartridges (double 222 O-ring / flat end) up to 3.25 in. / 82.5 mm diameter
Vent/drain connections
- ¹⁄₄ in., ¹⁄₂ in. male flare style
- ¹⁄₄ in. NPT
- ¹⁄₄ in., ¹⁄₂ in. Butt weld
Mounting bolts: 4 hex bolts M8 x 80 + nut

Operating Conditions

Maximum Operating Pressure:
- 80 psig @ 86 °F / 5.6 bar @ 30 °C
- 40 psig @ 200 °F / 2.8 bar @ 95 °C

Performance

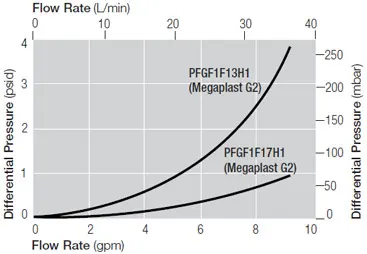

Pressure Drop vs. Liquid Flow Rate5

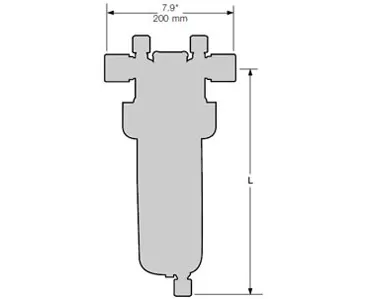

Dimensions

Ordering Information

Part Number	Description⁴	Inlet / Outlet	Vent Drain	Length (L) (in. / mm)
PFGF04F13H1	4 in. / 102 mm element, Housing PVDF Collar Nut	³⁄₄ in. flare style	¹⁄₄ in. flare style	9.72 / 247
PFGF04F17H1	4 in. / 102 mm element, Housing PVDF Collar Nut	1 in. flare style	¹⁄₂ in. flare style	9.88 / 251
PFGF04N12H1	4 in. / 102 mm element, Housing PVDF Collar Nut	³⁄₄ in. NPT	¹⁄₄ in. NPT	8.94 / 227
PFGF04P12H1	4 in. / 102 mm element, Housing PVDF Collar Nut	³⁄₄ in. Butt weld	¹⁄₄ in. Butt weld	9.53 / 242
PFGF04P16H1	4 in. / 102 mm element, Housing PVDF Collar Nut	1 in. Butt weld	¹⁄₂ in. Butt weld	9.53 / 242
PFGF1F13H1	10 in. / 254 mm element, Housing PVDF Collar Nut	³⁄₄ in. flare style	¹⁄₄ in. flare style	14.85 / 377
PFGF1F17H1	10 in. / 254 mm element, Housing PVDF Collar Nut	1 in. flare style	¹⁄₂ in. flare style	15.0 / 381
PFGF1N12H1	10 in. / 254 mm element, Housing PVDF Collar Nut	³⁄₄ in. NPT	¹⁄₄ in. NPT	14.06 / 357
PFGF1P12H1	10 in. / 254 mm element, Housing PVDF Collar Nut	³⁄₄ in. Butt weld	¹⁄₄ in. Butt weld	14.65 / 372
PFGF1P16H1	10 in. / 254 mm element, Housing PVDF Collar Nut	1 in. Butt weld	¹⁄₂ in. Butt weld	14.65 / 372
PFGF2F13H1	20 in. / 508 mm element, Housing PVDF Collar Nut	³⁄₄ in. flare style	¹⁄₄ in. flare style	25.16 / 639
PFGF2F17H1	20 in. / 508 mm element, Housing PVDF Collar Nut	1 in. flare style	¹⁄₂ in. flare style	25.31 / 643
PFGF2N12H1	20 in. / 508 mm element, Housing PVDF Collar Nut	³⁄₄ in. NPT	¹⁄₄ in. NPT	24.37 / 619
PFGF2P12H1	20 in. / 508 mm element, Housing PVDF Collar Nut	³⁄₄ in. Butt weld	¹⁄₄ in. Butt weld	24.96 / 634
PFGF2P16H1	20 in. / 508 mm element, Housing PVDF Collar Nut	1 in. Butt weld	¹⁄₂ in. Butt weld	24.96 / 634

4 All styles are available with a PTFE collar nut. For this option, change the fourth letter in the part number to a "P".

Unit conversion: 1 bar = 100 kilopascals
